RockSliders:


These are pictures taken during the fabricaiton of my rock sliders. They are 1/4" wall 4x2, welded directly to the frame.

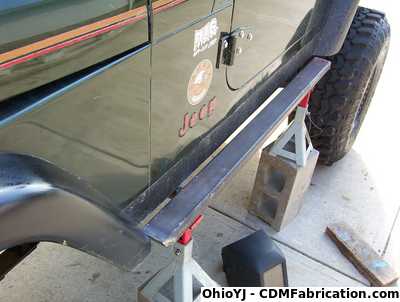

Taking some intial measurements:

Rock Slider Mock Up

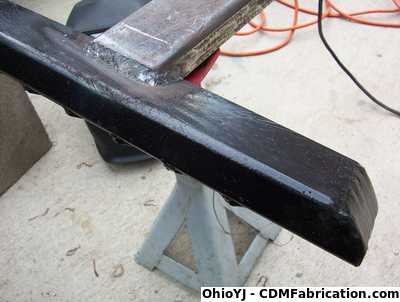

Welding on the braces:

Welding Braces on Rock Sliders

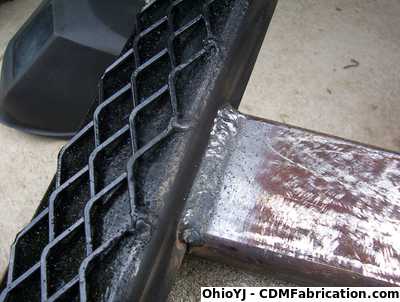

Expanded metal on the top for grip:

Using Expanded Metal On top of the rock sliders for grip

The braces are welded to a 1/4" plate, then welded directly to the frame:

Plate welded to frame

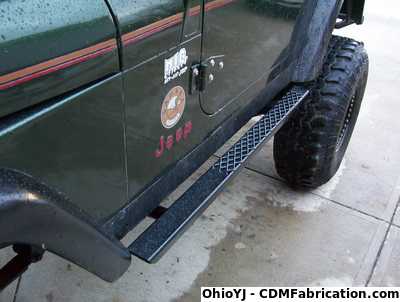

Final product:

Completed product
